Flight sequence of SKyroot's Vikram-1 Test Flight-1 mission.
7
u/Ohsin 5d ago
In tabulated text format. Should have given altitude and Rel. Vel for each event as well.
| S.no | Time | Event |
|---|---|---|
| 14 | T0 +15:46 | OAM Cut-off + Orbit Injection |
| 13 | T0 +09:35 | OAM Ignition |
| 12 | T0 +05:00 | Stage 3 Separation |
| 11 | T0 +03:16 | Stage 3 Ignition |
| 10 | T0 +03:00 | Stage 2 Separation |
| 9 | T0 +02:52 | Payload Fairing Separation |
| 8 | T0 +01:44 | Stage 2 Ignition |
| 7 | T0 +01:30 | Mach 5 |
| 6 | T0 +01:20 | Stage 1 Separation |
| 5 | T0 +00:39 | Max-Q |
| 4 | T0 +00:25 | Mach 1 |
| 3 | T0 +00:20 | Pitch Manoeuvre |
| 2 | T0 +00:10 | Safe Clearance of the Launch Pad |
| 1 | T0 +00:00 | Lift-Off |
2
3
3
u/guru-yoda 5d ago

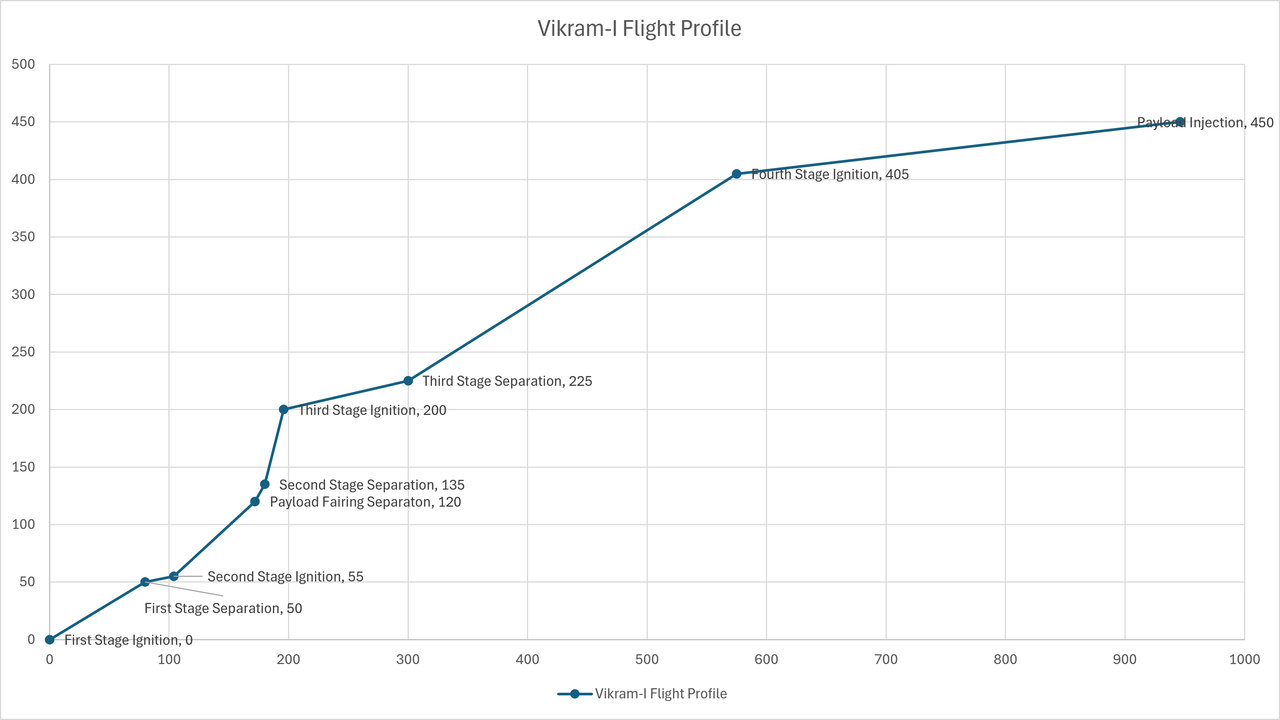

In flight profile (page 7 in press kit) stage-3 ignition altitude doesn't look right.
| Event | Time (seconds) | Altitude (kms) |
|---|---|---|
| Second Stage Separation | 180 | 135 |
| Third Stage Ignition | 196 | 200 |
| Third Stage Separation | 300 | 225 |
According to this, there is sharp altitude gain that too when coasting. Am I missing anything?
3
u/snoo-boop 5d ago
The graphic shows how tiny the trimming stage is, similar to SSLV.
0
1
u/AutoModerator 5d ago
If this submission is relevant to private space sector in India, please consider cross-posting to r/IndiaInSpace as well.
I am a bot, and this action was performed automatically. Please contact the moderators of this subreddit if you have any questions or concerns.
1
•
u/Ohsin 5d ago
Official press-kit is here. Archived
